Chapter 4. Portlet development

4.1. Portlet Primer
4.1.1. JSR-168 and JSR-286 overview
4.1.2. Tutorials
4.2. Global porlet.xml file
4.2.1. Global portlet.xml usecase
4.2.2. Global metadata

The Java Community Process (JCP) uses Java Specification Requests (JSRs) to define proposed specifications and technologies designed for the Java platform.

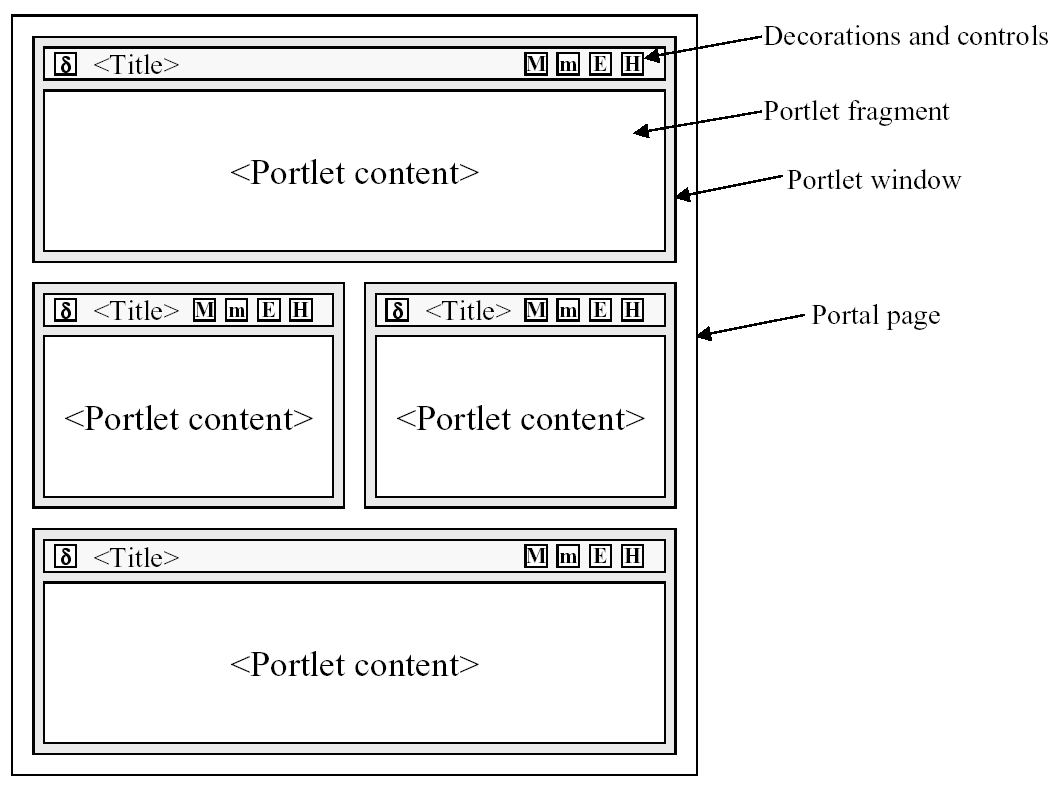

The Portlet Specifications aim at defining portlets that can be used by any JSR-168 (Portlet 1.0) or JSR-286 (Portlet 2.0) portlet container.

Most Java EE (Enterprise Edition) portals include at least one compliant portlet container, and GateIn 3.2 is no exception. In fact, GateIn 3.2 includes a container that supports both versions.

This chapter gives a brief overview of the Portlet Specifications, but portlet developers are strongly encouraged to read the JSR-286 Portlet Specification .

GateIn 3.2 is fully JSR-286 compliant. Any JSR-168 or JSR-286 portlet operates as it is mandated by the respective specifications inside the portal.

The tutorials contained in this chapter are targeted towards portlet developers. It is also recommended that developers read and understand the JSR-286 Portlet Specification .

Maven

This example is using Maven to compile and build the web archive. Maven versions can be downloaded from maven.apache.org

This section describes how to deploy a portlet in GateIn 3.2. A sample portlet called SimplestHelloWorld is located in the examples directory at the root of your GateIn 3.2 binary package. This sample is used in the following examples.

Below is the SimplestHelloWorldPortlet/src/main/java/org/gatein/portal/examples/portlets/SimplestHelloWorldPortlet.java Java source:

package org.gatein.portal.examples.portlets;

import java.io.IOException;
import java.io.PrintWriter;

import javax.portlet.GenericPortlet;
import javax.portlet.RenderRequest;
import javax.portlet.RenderResponse;

public class S(1)implestHelloWorldPortlet extends GenericPortlet
{
   public void doView(RenderRequest request,
              (2)         RenderResponse response) throws IOException
   {
      PrintWri(3)ter writer = response.getWriter();
      writer.w(4)rite("Hello World !");
      writer.c(5)lose();
   }
}
1

All portlets must implement the javax.portlet.Portlet interface. The portlet API provides a convenient implementation of this interface.

The javax.portlet.Portlet interface uses the javax.portlet.GenericPortlet class which implements the Portlet render method to dispatch to abstract mode-specific methods. This makes it easier to support the standard portlet modes.

Portlet render also provides a default implementation for the processAction, init and destroy methods. It is recommended to extend GenericPortlet for most cases.

2

If only the view mode is required, only the doView method needs to be implemented. The GenericPortletrender implementation calls our implementation when the view mode is requested.

3

Use the RenderResponse to obtain a writer to be used to produce content.

4

Write the markup to display.

5

Close the writer.

GateIn 3.2 requires certain descriptors to be included in a portlet WAR file. These descriptors are defined by the Jave EE (web.xml) and Portlet Specification (portlet.xml).

Below is an example of the SimplestHelloWorldPortlet/WEB-INF/portlet.xml file. This file must adhere to its definition in the JSR-286 Portlet Specification. More than one portlet application may be defined in this file:

<portlet-app xmlns="http://java.sun.com/xml/ns/portlet/portlet-app_2_0.xsd"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="http://java.sun.com/xml/ns/portlet/portlet-app_2_0.xsd
                                         http://java.sun.com/xml/ns/portlet/portlet-app_2_0.xsd"
   version="2.0">
   <portlet>
      <portlet(1)-name>SimplestHelloWorldPortlet</portlet-name>
      <portlet(2)-class>
         org.gatein.portal.examples.portlets.SimplestHelloWorldPortlet
      </portlet-class>
      <support(3)s>
        <mime-type>text/html</mime-type>
      </supports>
      <portlet(4)-info>
          <title>Simplest Hello World Portlet</title>
      </portlet-info>
   </portlet>
</portlet-app>
1

Define the portlet name. It does not have to be the class name.

2

The Fully Qualified Name (FQN) of your portlet class must be declared here.

3

The <supports> element declares all of the markup types that a portlet supports in the render method. This is accomplished via the <mime-type> element, which is required for every portlet.

The declared MIME types must match the capability of the portlet. It allows administrators to pair which modes and window states are supported for each markup type.

This does not have to be declared as all portlets must support the view portlet mode.

Use the <mime-type> element to define which markup type the portlet supports. In the example above, this is text/html. This section tells the portal to only output HTML.

4

When rendered, the portlet's title is displayed as the header in the portlet window, unless it is overridden programmatically. In the example above, the title would be Simplest Hello World Portlet .

This section discusses:

The code below is from the JSPHelloUser/src/main/java/org/gatein/portal/examples/portlets/JSPHelloUserPortlet.java Java source. It is split in different pieces.

Like the VIEW portlet mode, the specification defines two other modes; EDIT and HELP.

These modes need to be defined in the portlet.xml descriptor. This enables the corresponding buttons on the portlet's window.

The generic portlet that is inherited dispatches different views to the methods: doView , doHelp and doEdit.

...
   protected void doHelp(RenderRequest rRequest, RenderResponse rResponse) throws PortletException, IOException,
         UnavailableException
   {
      rResponse.setContentType("text/html");
      PortletRequestDispatcher prd = getPortletContext().getRequestDispatcher("/jsp/help.jsp");
      prd.include(rRequest, rResponse);
   }

   protected void doEdit(RenderRequest rRequest, RenderResponse rResponse) throws PortletException, IOException,
         UnavailableException
   {
      rResponse.setContentType("text/html");
      PortletRequestDispatcher prd = getPortletContext().getRequestDispatcher("/jsp/edit.jsp");
      prd.include(rRequest, rResponse);
   }
...

Portlet calls happen in one or two phases: when the portlet is rendered and when the portlet is actioned and then rendered.

An action phase is a phase where containing some state changes. The render phase will have access to render parameters that will be passed each time the portlet is refreshed (with the exception of caching capabilities).

The code to be executed during an action has to be implemented in the processAction method of the portlet.

...
         publi(1)c void processAction(ActionRequest aRequest, ActionResponse aResponse) throws PortletException, IOException,
         UnavailableException
   {
      String s(2)Yourname = (String) aRequest.getParameter("yourname");
      aRespons(3)e.setRenderParameter("yourname", sYourname);
   }
...
1

processAction is the method from GernericPorlet to override for the action phase.

2

Here the parameter is retrieved through an action URL .

3

The value of yourname is kept to make it available in the rendering phase. The previous line simply copies action parameters to a render parameter for this example.

The help.jsp and edit.jsp files are very simple. Note that CSS styles are used as defined in the portlet specification. This ensures that the portlet will render successfully within the theme and across portal vendors.

<div class="portlet-section-header">Help mode</div>
<div class="portlet-section-body">This is the help mode where you can find useful information.</div>
<div class="portlet-section-header">Edit mode</div>
<div class="portlet-section-body">This is the edit mode where you can change your portlet preferences.</div>

The landing page contains the links and form to call the portlet:

<%@ taglib uri(1)="http://java.sun.com/portlet" prefix="portlet" %>

<div class="portlet-section-header">Welcome !</div>

<br/>

<div class="portlet-font">Welcome on the JSP Hello User portlet,
my name is GateIn Portal. What's yours ?</div>

<br/>

<div class="portlet-font">Method 1: We simply pass the parameter to the render phase:<br/>
<a href="<port(2)let:renderURL><portlet:param name="yourname" value="John Doe"/>
                </portlet:renderURL>">John Doe</a></div>

<br/>

<div class="portlet-font">Method 2: We pass the parameter to the render phase, using valid XML:
Please check the source code to see the difference with Method 1.
<portlet:rende(3)rURL var="myRenderURL">
    <portlet:param name="yourname" value='John Doe'/>
</portlet:renderURL>
<br/>
<a href="<%= m(4)yRenderURL %>">John Doe</a></div>

<br/>

<div class="portlet-font">Method 3: We use a form:<br/>

<portlet:actio(5)nURL var="myActionURL"/>
<form action="(6)<%= myActionURL %>" method="POST">
         <span class="portlet-form-field-label">Name:</span>
         <input class="portlet-form-input-field" type="text" name="yourname"/>
         <input class="portlet-form-button" type="Submit"/>
</form>
</div>
1

The portlet taglib which needs to be declared.

2

The first method shown here is the simplest one. portlet:renderURL will create a URL that calls the render phase of the current portlet and append the result at the place of the markup (within a tag). A parameter is also added directly to the URL.

3

In this method, the var attribute is used. This avoids having one XML tag within another. Instead of printing the url, the portlet:renderURL tag will store the result in the referenced variable ( myRenderURL).

4

The variable myRenderURL is used like any other JSP variable.

5

The third method mixes the form submission and action request. Again, a temporary variable is used to put the created URL into.

6

The action URL is used in the HTML form.

In the third method, the action phase is triggered first, then the render phase is triggered, which outputs some content back to the web browser based on the available render parameters.

To write a portlet using JSF, it is required to have a 'bridge'. This software allows developers to write a portlet application as if it was a JSF application. The bridge then negotiates the interactions between the two layers.

An example of the JBoss Portlet Bridge is available in examples/JSFHelloUser. The configuration is slightly different from a JSP application. This example can be used as a base to configure instead of creating a new application.

As in any JSF application, the file faces-config.xml is required. It must contain the following information:

<faces-config>
...
    <application>
      <view-handler>org.jboss.portletbridge.application.PortletViewHandler</view-handler>
      <state-manager>org.jboss.portletbridge.application.PortletStateManager</state-manager>
   </application>
...
</faces-config>

The portlet bridge libraries must be available and are usually bundled with the WEB-INF/lib directory of the web archive.

The other differences as compared to a regular portlet application can be found in the portlet descriptor. All details about it can be found in the JSR-301 specification that the JBoss Portlet Bridge implements.

The Global metadata is declared in the portlet.xml file conforming with Portlet 2.0 's XSD.


<portlet-app version="1.0" xmlns="http://java.sun.com/xml/ns/portlet/portlet-app_2_0.xsd"
             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xsi:schemaLocation="http://java.sun.com/xml/ns/portlet/portlet-app_2_0.xsd http://java.sun.com/xml/ns/portlet/portlet-app_2_0.xsd">

</portlet-app>
